`psin`

Display system information in a Photon window

Syntax:

psin [-h height] [-S i|m|n]
     [-s server] [-w width] [-x x_pos] [-y y_pos]

Options:

-h height: Set the initial height of window to height pixels.
-S i|m|n: Specify the initial window state (i - iconify, m - maximize, n - normal).
-s server: Specify the server node or device name.
-w width: Set the initial width of window to width pixels.
-x x_pos: Initial x_pos position of window.
-y y_pos: Initial y_pos position of window.

Description:

The psin utility displays system information in a graphical manner (for a textual version of this command, see sin).

When you invoke psin, it displays a Photon window titled System Process Inspector.

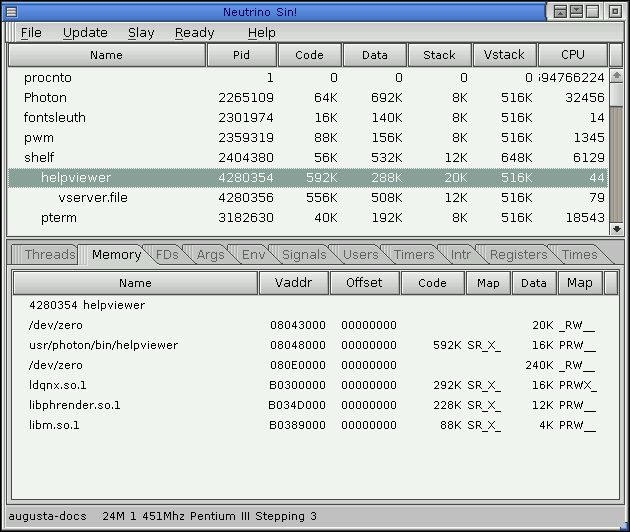

System information

This window contains two menu items, and an upper and lower pane.

Menu items

There are two menus at the top of the System Process Inspector window: File and Action.

The File menu:

This feature is currently under development

The Action menu lets you:

refresh the display
show only processes with at least one ready thread
slay any process

Upper pane

The upper pane in the System Process Inspector window displays the following headers:

Header	Description
Pid	Process ID
Code	Size of code memory
Data	Size of data memory
Stack	Amount of stack currently mapped
Vstack	Maximum amount of stack allowed
CPU	Total CPU occupancy time, in milliseconds

You can sort the displayed processes by clicking on column headers. When you've selected the process you're interested in, you can view specific information about that process by selecting a particular tab in the lower pane.

Lower pane

The lower pane in the System Process Inspector window displays several tabs used to provide detailed information about a selected process.

Threads

Clicking this tab shows information about the threads of the displayed process, as follows:

This column:	Shows this:
Tid	Thread ID
Priority	Scheduling priority number and scheduling algorithm (see below)
State	Current state of the thread (see below for possible states)
Blocked	The PID that this process is blocked on
IP	The EIP register set used by the displayed processes
CPU	CPU occupancy time, in milliseconds

The letter following the scheduling priority number stands for the scheduling algorithm used, as follows:

f -- FIFO scheduling
r -- round-robin scheduling
o -- other (currently, same as round-robin scheduling)
s -- sporadic scheduling

For more information on these scheduling algorithms, see "Thread scheduling" in the QNX Neutrino Microkernel chapter of the System Architecture guide.

Possible thread states:

State:	Meaning:
CONDVAR	Blocked on a condition variable
DEAD	Terminated, waiting for a join by another thread
INTERRUPT	Blocked, waiting for interrupt
JOIN	Blocked, waiting to join another thread
MUTEX	Blocked on a mutual exclusion lock
NANOSLEEP	Sleeping for a short time
READY	Waiting while processor executes another thread
RECEIVE	Blocked on a message receive
REPLY	Blocked on a message reply
RUNNING	Being executed
SEM	Waiting for a semaphore to be posted
SEND	Blocked on a message send
SIGSUSPEND	Blocked waiting for a signal
SIGWAITINFO	Blocked waiting for a signal
STACK	Waiting for virtual address space allocation
STOPPED	Blocked, waiting for a SIGCONT signal
WAITCTX	Waiting for a non integer (e.g. floating point) context
WAITPAGE	Waiting for physical memory allocation
WAITTHREAD	Waiting for child thread creation

Memory

Clicking this tab shows details about the memory used by the displayed process, as follows:

This column:	Shows this:
Name	Name of program or device
Vaddr	Virtual address
Offset	Virtual address offset
Code	Size of code memory
Map	Code memory mapping flags (see below)
Data	Size of data memory
Map	Data memory mapping flags (see below)

Memory mapping flags:

S -- shared memory
P -- private memory
A -- anonymous memory
R -- read permission
W -- write permission
X -- execute permission
N -- cache not allowed

For more information, see mmap() in the Neutrino Library Reference.

FDs

Clicking this tab shows information about the file descriptors used by the displayed process, as follows:

This column:	Shows this:
FD	File descriptor
Server PID	Process ID of server
Mode	W (write) R (read)
Offset/Size	Memory details
Pathname	FD path

Args

Click this tab to see the arguments used when the displayed process was started.

Env

Click this tab to see the environment variables used by the displayed process.

Signals

Clicking this tab shows the signal state of the displayed process, as follows:

This column:	Shows this:
Tid	Thread ID
Ignored/Blocked (64-49.48-33)	Mask for signals 33-64
Ignored/Blocked (32-17.16-1)	Mask for signals 1-32
Pending (64-49.48-33)	Signals 33-64 waiting to be unmasked
Pending (32-17.16-1)	Signals 1-32 waiting to be unmasked

Users

Clicking this tab shows information about the user IDs associated with the displayed process, as follows:

This column:	Shows this:
UID	Real user ID
EUID	Effective user ID
SUID	Saved user ID
GID	Real group ID
EGID	Effective group ID
SGID	Saved group ID

Timers

Clicking this tab shows information about the timers used by the displayed process, as follows:

This feature is under development.

This column:	Shows this:
Timer	PID and process name
Stuff	TBD

Intr

Clicking this tab shows information about interrupts used by the displayed process, as follows:

This feature is under development.

This column:	Shows this:
FD	file descriptor
Data	TBD

Registers

Currently, this feature is available only for x86 platforms.

Clicking this tab shows information about the register sets used by the displayed process, as follows:

This column:	Shows this:
TID	Thread ID
EIP	Instruction pointer
EAX	Accumulation register
EBX	Accumulation register
ECX	Accumulation register
EDX	Accumulation register
ESI	General-purpose register
EDI	General-purpose register
EBP	Stack-frame pointer
ESP	Stack pointer
EFLAGS	Status register

Times

Clicking this tab gives timing information about the displayed process, as follows:

This column:	Shows this:
Start Time	The date and time this process was started
System	Milliseconds of CPU time taken by the system on behalf of this process
User	Milliseconds of CPU time taken by this process itself
Child System	Milliseconds of CPU time taken by the system on behalf of the children of this process
Child User	Milliseconds of CPU time taken by the children of this process

Examples:

Run psin window at an initial position (10,10) with initial dimension of 200*300.

psin -x10 -y10 -h200 -w300

Run psin using the Photon server on the computer known as remote_server on your network:

psin -s remote_server

psin -s remote_server/dev/photon
